WPWA蜗轮减速机 |
|
| 产品名称：WPWA蜗轮减速机 |
| 产品编号： |
| 详细说明： |
产品简介：
WPWA40、WPWA50、WPWA60、WPWA70、WPWA80、WPWA100、WPWA120、WPWA135、WPWA155、WPWA175、WPWA200、WPWA250、型蜗轮蜗杆减速器主要尺寸

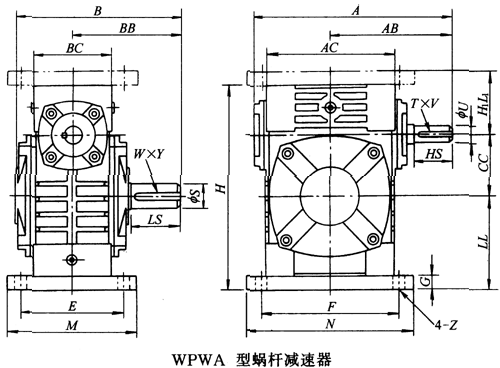

WPWA型蜗杆减速器主要尺寸/mm
|
规格
|
减速比
|
A
|
AB
|
B
|
BB
|
AD
|
BD
|
AC
|
BC
|
CC
|
HL
|
H1L1
|
LL
|
M
|
N
|
E
|
|
40
|
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60
|
149
|
89
|
124
|
79
|
78
|
42
|
95
|
61
|
40
|
35
|
45
|
60
|
100
|
130
|
80
|
|
50
|
175
|
107
|
150
|
97
|
85
|
50
|
111
|
68
|
50
|
35
|
50
|
80
|
120
|
140
|
95
|
|
60
|
198
|
122
|
168
|
112
|
105
|
55
|
127
|
76
|
60
|
42
|
60
|
93
|
130
|
150
|
105
|
|
70
|
231
|
140
|
194
|
131
|
125
|
65
|
152
|
86
|
70
|
55
|
73
|
108
|
150
|
190
|
115
|
|
80
|
261
|
160
|
214
|
142
|
140
|
70
|
169
|
102
|
80
|
65
|
83
|
123
|
170
|
220
|
135
|
|
100
|
322
|
190
|
254
|
169
|
180
|
90
|
216
|
117
|
100
|
80
|
100
|
150
|
190
|
270
|
155
|
|
120
|
381
|
229
|
282
|
190
|
220
|
100
|
256
|
124
|
120
|
95
|
120
|
180
|
230
|
320
|
180
|
|
135
|
433
|
260
|
317
|
210
|
260
|
110
|
296
|
147
|
135
|
105
|
135
|
215
|
250
|
350
|
200
|
|
155
|
504
|
302
|
382
|
252
|
280
|
120
|
345
|
185
|
155
|
103
|
135
|
235
|
280
|
380
|
220
|
|
175
|
545
|
325
|
402
|
262
|
320
|
140
|
374
|
192
|
175
|
123
|
160
|
260
|
310
|
410
|
250
|
|
200
|
587
|
350
|
467
|
305
|
360
|
150
|
412
|
230
|
200
|
130
|
175
|
290
|
355
|
445
|
290
|
|
250
|
705
|
420
|
552
|
360
|
420
|
190
|
500
|
285
|
250
|
150
|
200
|
350
|
460
|
560
|
380
|
|
规格
|
减速比
|
F
|
G
|
Z
|
M1
|
N1
|
E1
|
E2
|
E3
|
G1
|
输入轴
|
输出轴
|
|
HS
|
U
|
T×V
|
LS
|
S
|
W×Y
|
|
40
|
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60
|
110
|
10
|
10
|
95
|
187
|
72
|
97
|
70
|
12
|
25
|
12
|
4×2.5
|
28
|
14
|
5×3
|
|
50
|
110
|
15
|
12
|
111
|
226
|
90
|
110
|
90
|
14
|
30
|
12
|
4×2.5
|
40
|
17
|
5×3
|
|
60
|
120
|
18
|
12
|
127
|
257
|
102
|
129
|
100
|
15
|
40
|
15
|
5×3
|
50
|
22
|
6×3.5
|
|
70
|
150
|
18
|
15
|
152
|
305
|
120
|
155
|
120
|
20
|
40
|
18
|
6×3.5
|
60
|
28
|
8×4
|
|
80
|
180
|
18
|
15
|
174
|
350
|
140
|
180
|
140
|
20
|
50
|
22
|
6×3.5
|
65
|
32
|
10×5
|
|
100
|
220
|
20
|
15
|
224
|
410
|
165
|
215
|
190
|
22
|
50
|
25
|
8×4
|
75
|
38
|
10×5
|
|
120
|
260
|
25
|
18
|
264
|
494
|
195
|
255
|
220
|
25
|
65
|
30
|
8×4
|
85
|
45
|
14×5.5
|
|
135
|
290
|
30
|
18
|
304
|
559
|
230
|
285
|
260
|
30
|
75
|
35
|
10×5
|
95
|
55
|
16×6
|
|
155
|
320
|
32
|
21
|
345
|
605
|
250
|
305
|
290
|
35
|
85
|
40
|
12×5
|
110
|
60
|
18×7
|
|
175
|
350
|
37
|
21
|
374
|
675
|
273
|
348
|
320
|
40
|
85
|
45
|
14×5.5
|
110
|
65
|
18×7
|
|
200
|
390
|
45
|
24
|
424
|
749
|
305
|
390
|
370
|
40
|
95
|
50
|
14×5.5
|
125
|
70
|
20×7.5
|
|
250
|
480
|
50
|
28
|
510
|
920
|
375
|
475
|
440
|
45
|
110
|
60
|
18×7
|
155
|
90
|
25×9
|
|
 |
